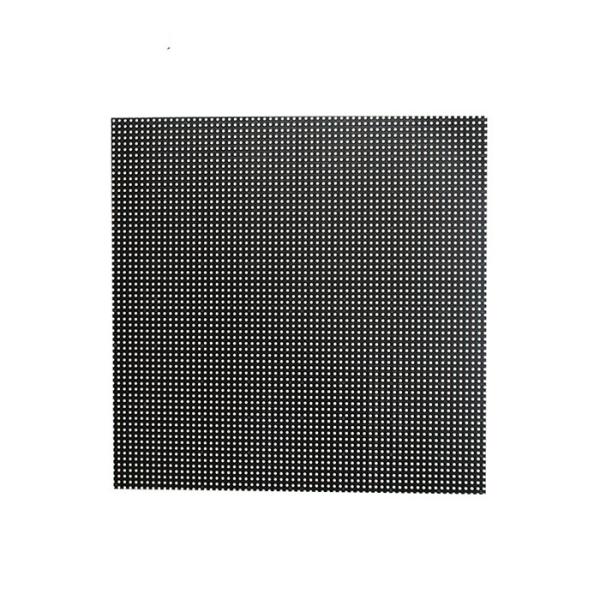

Small Pixel Pitch P2.976 250mmX250mm LED Screen Module

Brand Name : XGCLED

Model Number : P2.976 LED module

Place of Origin : Shen Zhen ,China

MOQ : 1 pcs module

Price : USD$52/PCS

Payment Terms : T/T, Western Union, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 square meter per month

Delivery Time : 7-20days

Packaging Details : Cartons , wooden case , fright case

Model : P2.976 LED module

Pixel Pitch : 2.976

Module size : 250mmX250mm

Module Resolution : 84X84pixels

Driving IC : MBI5124

Cabinet Size : 500mmX1000mm

Cabinet Resolution : 168X336pixels

Module Qty : 2X4pcs

Material : Die casting Aluminum

Cabinet weight : 18kg

Brightness : ≥1100 cd/m2

Scanning Mode : 1/16Scan

Viewing Angle : Vertical 150° Horizontal 140°

Grey level : 14 bit

Refresh rate : ≥1920 Hz

Ave/Max power conspution : 300W/㎡~900W/㎡

Contact Now

Cheap factory price small pixel pitch P2.976 250mmX250mm LED module size

1. Technical paremeter

Indoor P2.976 SMD2121 LED module parameter
Pixel Information Pixel Pitch 2.976mm
Pixel Density 112896Pixels/m2
Pixel Configuration 1R1G1B
LEDs Brand Red: Silan/ Epistar / Cree
Green:Silan/ Epistar / Cree
Blue: Silan/ Epistar / Cree
LEDs Wavelength Red: 615 nm - 625 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size 250mm (Width) × 250 mm(Height) = 0.0625/m2
Module Resolution 84 pixels(Width) × 84 pixels(Height) = 7056pixels
LED Cabinet Cabinet Size 500 mm(Width) × 500mm(Height) = 0.25/m²
Cabinet Resolution 168Pixels(Width) × 168Pixels(Height) = 28224Pixels
Total QYT Module Per Cabinet 2Modules(Width) × 2Modules(Height) = 4Modules
Cabinet Weight 8kgs
Cabinet Material Die casting Aluminum
Power Input Voltage 110-240V AC, 50/60Hz
Max Power Consumption 1200 Watt/ m²
Avg. Power Consumption 600 Watt/ m²
Viewing Brightness ≥5000cd/m2
Brightness Uniformity Luminance Discrepancy < 4%
Colors 256X256X256
Grey Scale(Level) 14bits
Slot Between Neighboring Modules < 1 mm
Best Viewing Angle Horizontal:160°/ Vertical:140°
Viewing Distance 3-100 Meters
Ambint Conditions Temperature Range Storage:-40 °c to +85°c.; Working:-20°c to +60°c
Operating Humidity 10%-90%RH
Ingression Protection Grade Front Side: IP31 (Resist spraying of water gun directly);
Back Side: IP30 (Resist Rain)
Processing Scanning Mode Real Pixel , 1/16Scan
Refresh Frequency 1920HZ
